Woodcut Machines

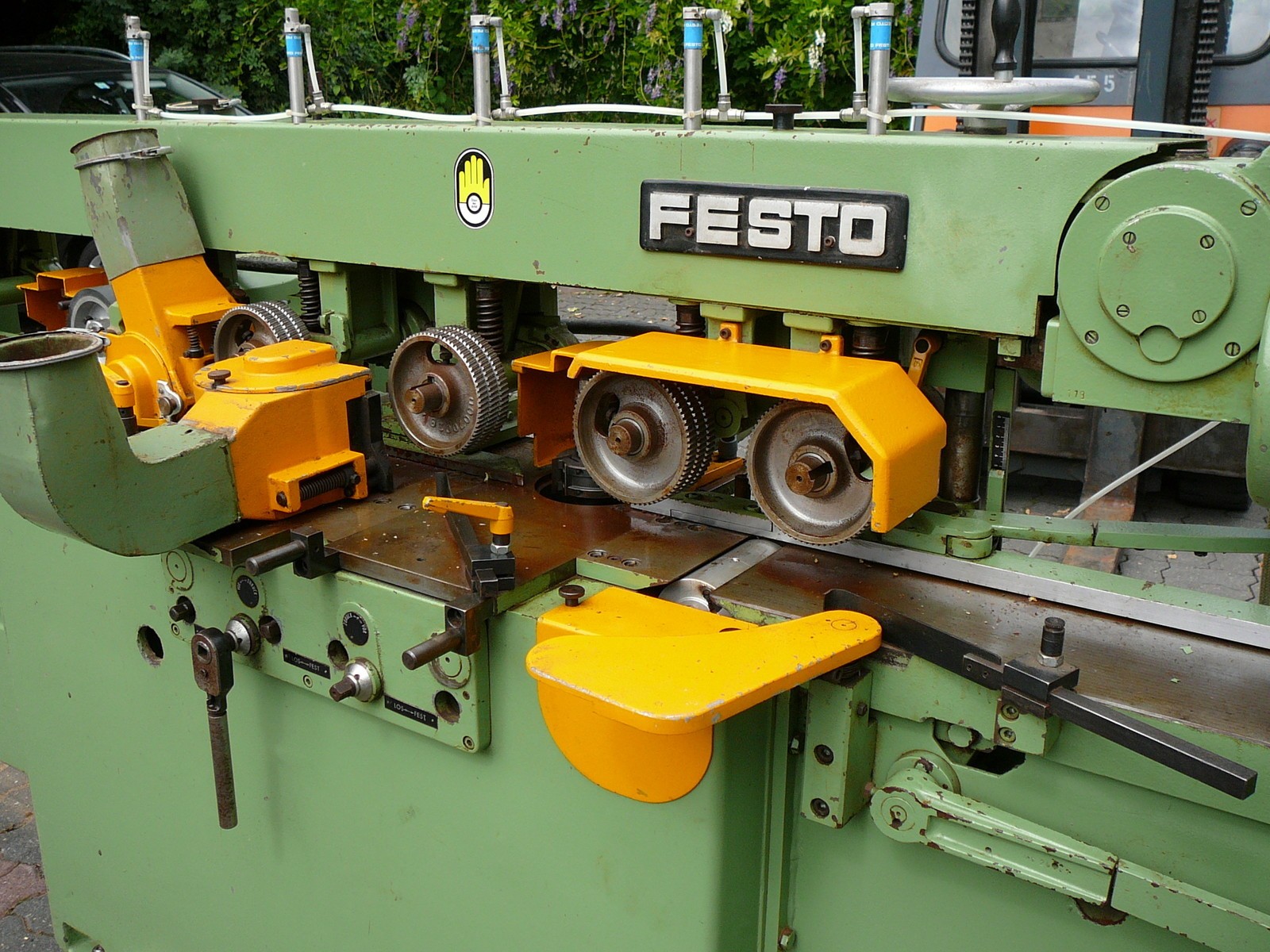

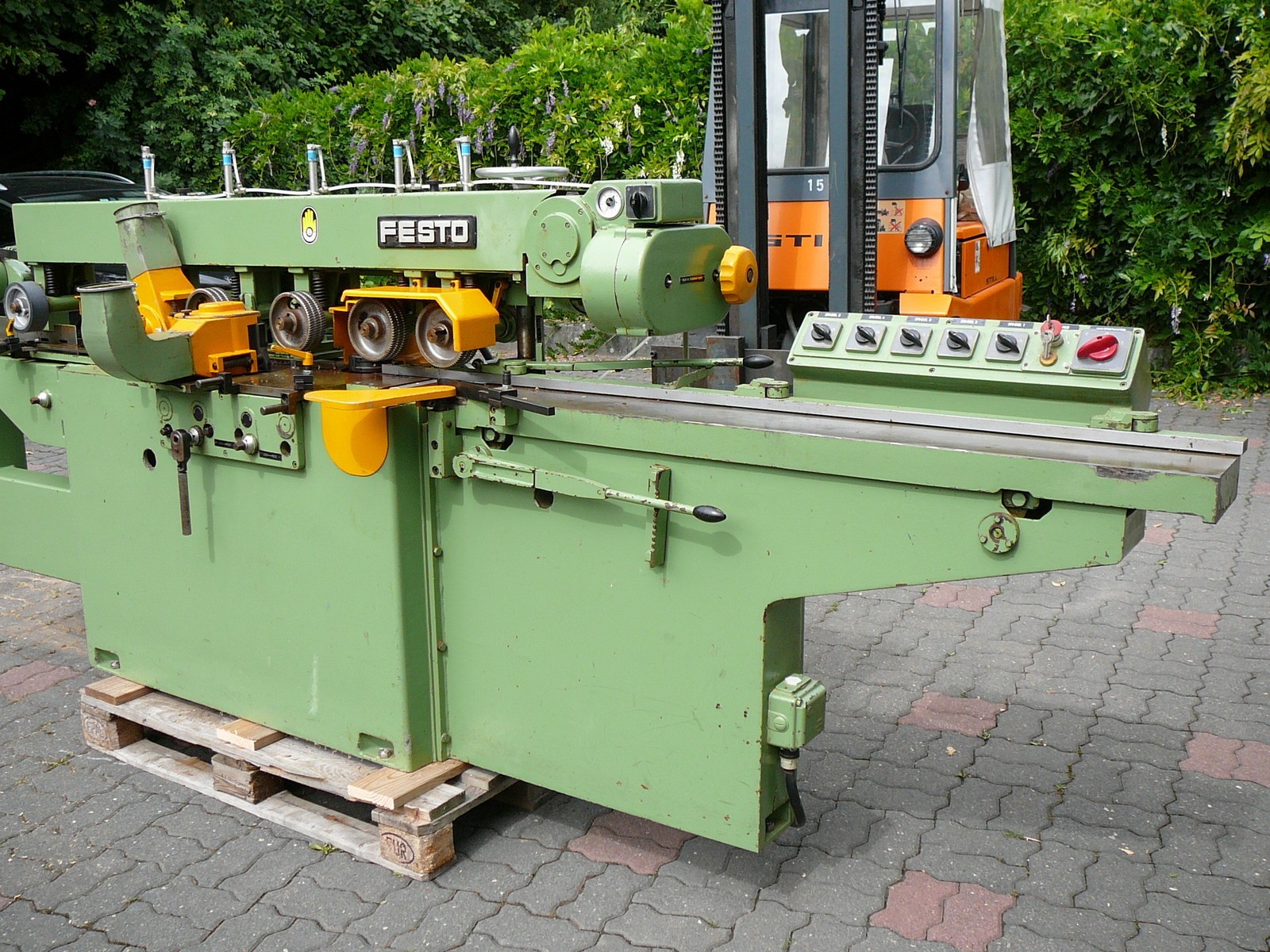

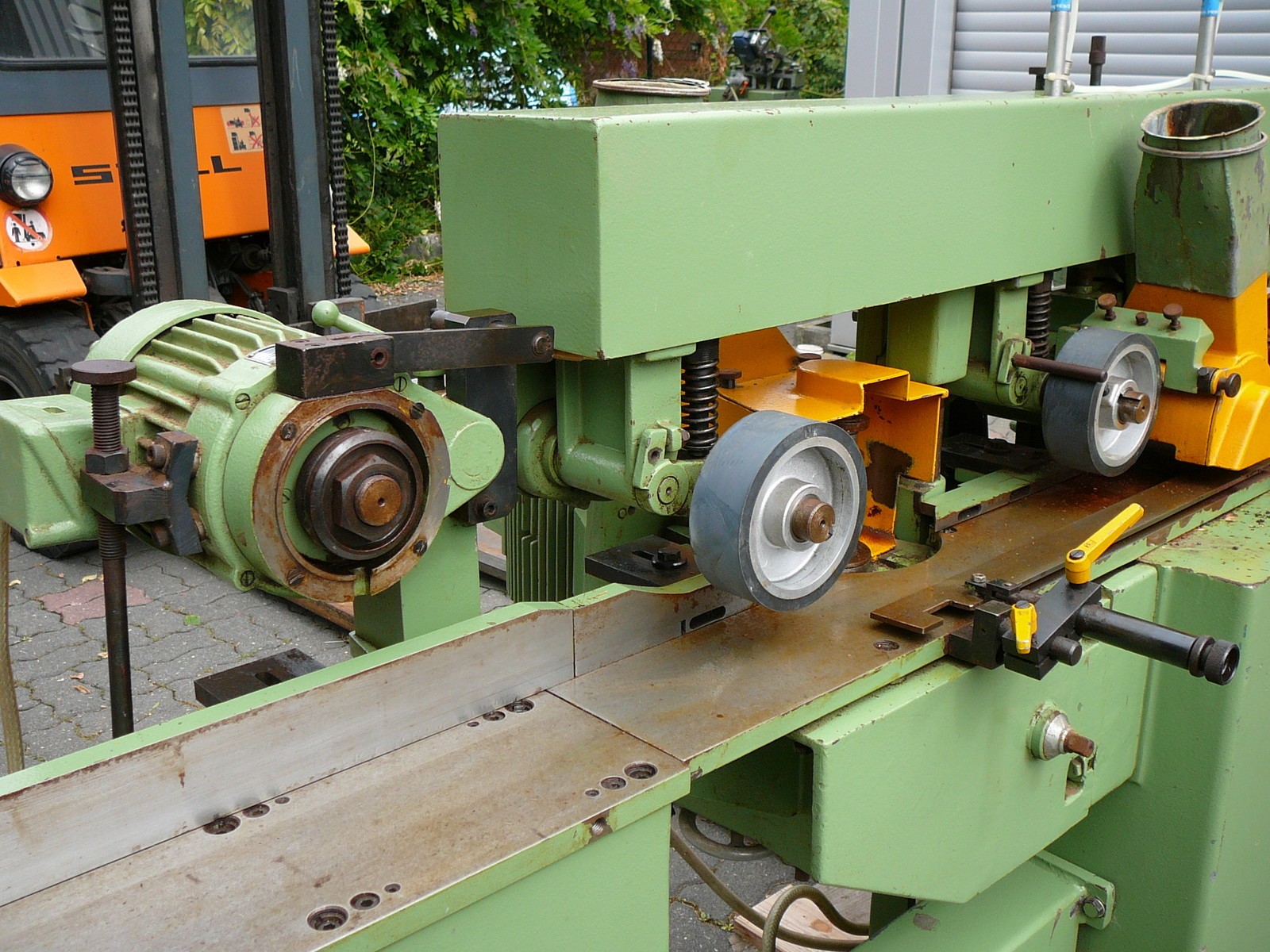

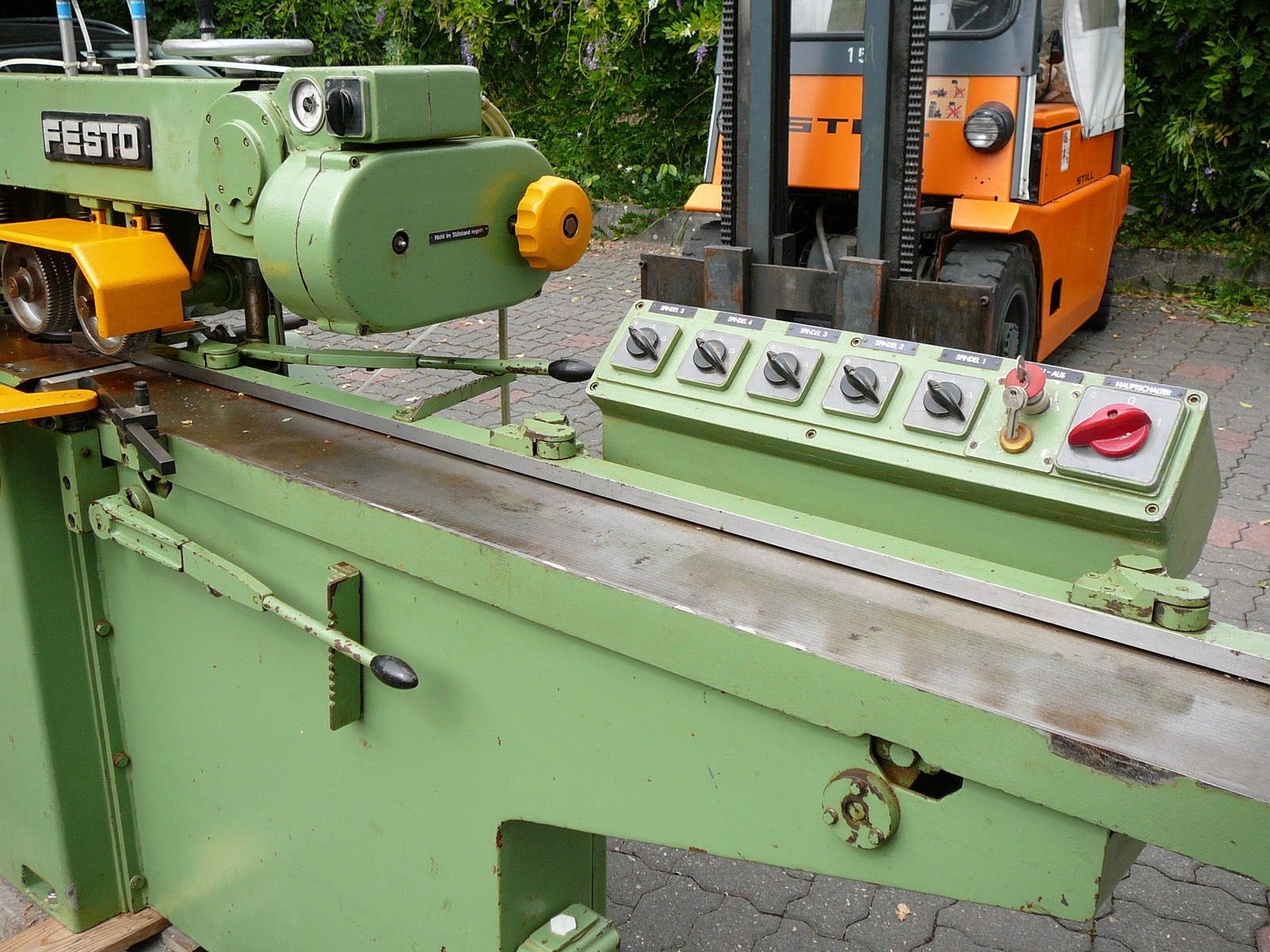

FESTO Moulder DSN

Working width mm 100 Planing height mm 100 Number of spindles 4 Spindle configuration b-r-l-t Infeed table length mm 1500 Type of feed roller drive Chain Bottom spindles 1 Right spindles 1 Spindles left 1 Spindles top 1 Spindle diameter mm 30 Seperate motor per spindle Yes Continuously variable feed Yes Feed motor kW 0.75 Weight kg 1150

Working width mm 100
Planing height mm 100
Number of spindles 4
Spindle configuration b-r-l-t
Infeed table length mm 1500
Type of feed roller drive Chain
Bottom spindles 1
Right spindles 1
Spindles left 1
Spindles top 1
Spindle diameter mm 30
Seperate motor per spindle Yes
Continuously variable feed Yes
Feed motor kW 0.75
Weight kg 1150
