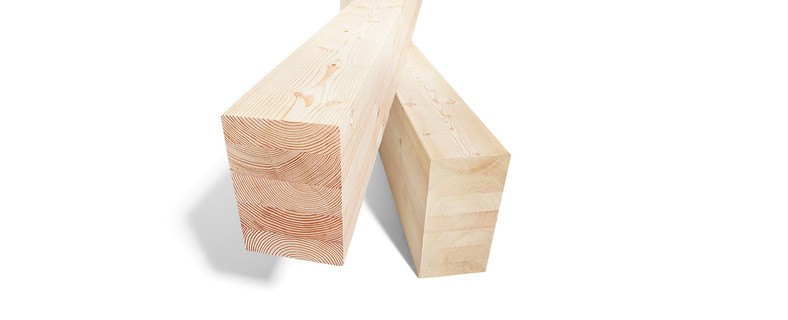

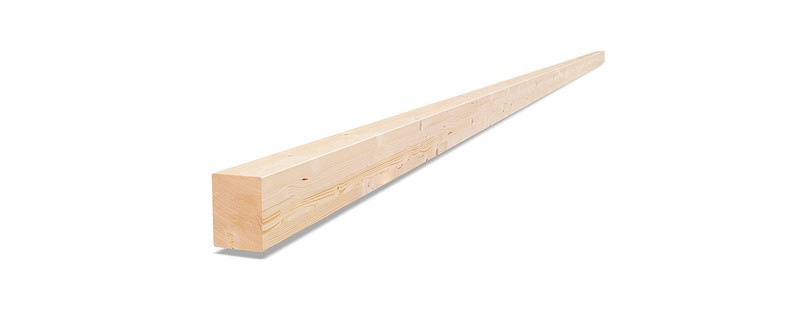

Straight components
Thanks to the high architectural requirements in construction and the trend towards ecological building, glued-laminated timber has experienced a tremendous upturn over the last few years.
Everywhere that high shape retention and dimensional accuracy is required in combination with cost efficiency and an elegant finish, glued-laminated timber is a far better choice than solid timber. Because of the rigid connection between the individual planks of timber, it is possible to produce components that possess much better technical properties than solid timber. Expansive surfaces and challenging structural requirements are easy to overcome when using glued-laminated timber to create special components.
| Technical data | |
|---|---|
| Timber types | Spruce |
| Timber moisture | 11% ± 2% when delivered |
| Bulk density | Approx. 450 kg/m3 |
| Straight GLT | |
| Widths | 80 to 280 mm (increments of 20 mm) |
| Heights | 120 to 2,560 mm |
| Length | Up to 36 m |
| Glue | Melamine urea resin |
Delivery state of GLT
- Planed, chamfered and patched (also applies to special components).
- On request, any programming capacity is possible at three highly modern processing centres (see CNC programming chapter).
Lamellae
Standard Sorted according to DIN 4074
Strength 40 mm (for technical reasons and to comply with the stipulated standards, the manufacturer reserves the right to use weaker lamellae)
| Strength classes | |
|---|---|
| GL24h | In visual quality and industrial quality |
| GL28c | In visual quality and industrial quality |
| GL32h | In visual quality |
| Standards | |
|---|---|
| GLT requirements | According to ÖNORM 14080 |
| Strength classification | According to ÖNORM DIN 4074-1 |
| Finger joints | According to EN 385:2002-03 |
All cross-sections are possible in visual quality and industrial quality.
