Wall and ceiling elements
Properties and potential applications

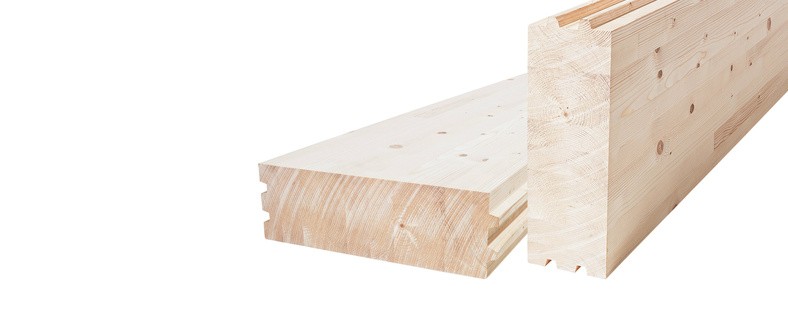

Build the intelligent and light way: Wall and ceiling elements from Johann Pabst Holzindustrie are lighter than concrete elements and are thus synonymous with modern timber construction. The benefits: they can be laid quickly, fit perfectly, are dimensionally stable and are made using the dry construction process that means the new occupants can move in immediately. The elements are delivered ready to assemble and are easy to handle thanks to their low tare weight. GLT ceiling elements are dry and can be subjected to loading immediately after laying.
Technical data | |
---|---|
Strength | 60 mm to 240 mm |

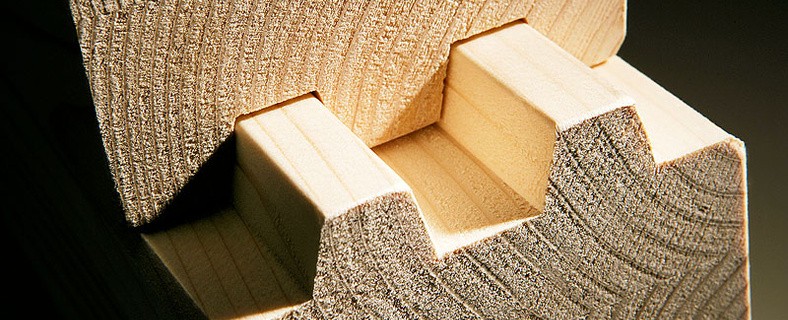

Version | Tongue and groove, third-party tongue |
Lengths | 6 to 18 m |
Qualities | In visual and industrial quality |
Strength classes | GL24H, GL32H |
Widths | 200 mm to 1,000 mm |
Tolerances | ± 1 mm, length ± 3 mm |
Fire protection | Fire protection from REI 0 (F0) to REI 90 (F90) |
Measurement according to | ÖNORM EN 1995-1-2 |
Invoiced size | Completed size (including tongue) |
